New
Model: XP-A155U-B
$23,228.00 USD

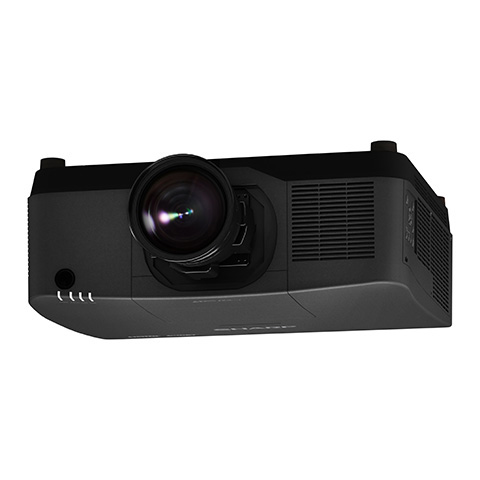

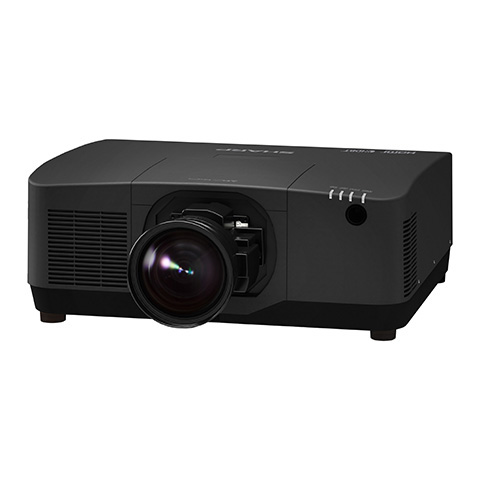

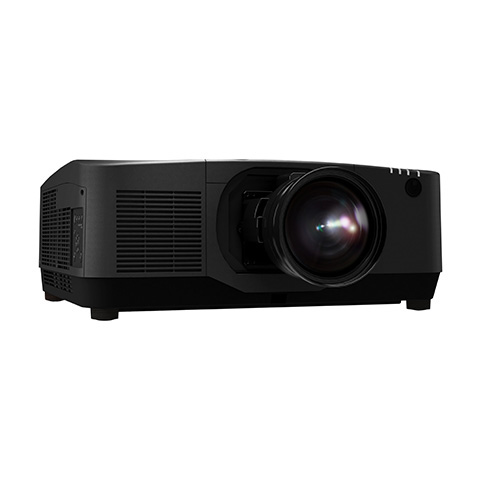

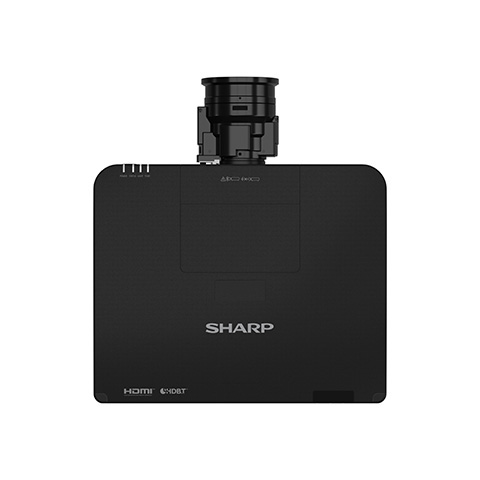

The Sharp A155U-B (black cabinet) is a 15,000 center lumen, WUXGA resolution, LCD, laser projector with advanced professional installation features for higher education and corporate users. Sharp's sealed LCD cooling system allows for a filter free design while delivering extremely quiet operation. With its multitude of digital inputs, connection to any computer or high-definition device is possible. Enjoy installation flexibility with a complete line of optional motorized lenses (powered shift, focus and zoom), roll free installation capabilities and ProAssist software support. The HDBaseT input provides a single connection for uncompressed full HD digital video, audio, ethernet and various control signals.
  • Choose from a complete line of optional lenses for maximum installation flexibility
  • Long lasting laser light source with Sharp's IP5X sealed cooling system eliminates the need for lamp replacements and filter cleaning
  • Full connectivity including HDBaseT in and out for passing video, audio and control from one projector to another
  • Compatible with Crestron, Extron, AMX and PJLink control systems along with competitor command support reduces the need for reprogramming basic controls.



Legal Disclaimer To California Residents
WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov


Display

Aspect Ratio 16:10 (Supports 4:3, 16:9, 21:9) Screen Resolution WUXGA 1920x1200
Maximum Resolution 4K 4096 x 2160 Brightness (typical) 14000 Lumens
Brightness (maximum) 15000 Center Lumens Contrast Ratio (typical) 3,000,000:1 (with Dynamic Contrast)
Color Processing 10-bit color processing (approx. 1.07 billion colors)

Synchronization Range

Horizontal (Analog/Digital) 15KHz, 24~153KHz Vertical 24,25,30,48,50~85,100,120Hz

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, WQXGA
Macintosh Signal Compatibility Yes External Control RS-232, IR, DDC/CI

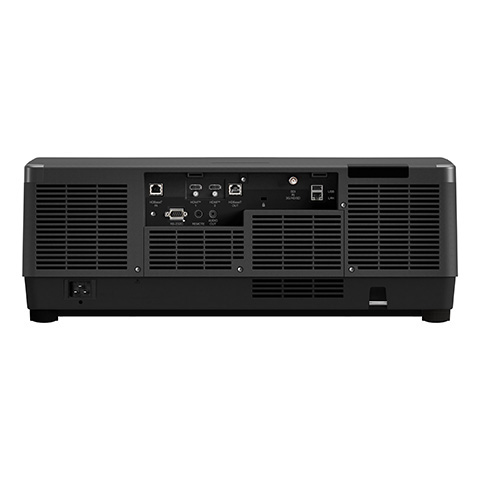

Input Terminals
External Control:
RS-232 (D-Sub 9pin), IR, LAN, HDBaseT, Wired Remote
RGB1(digital):
HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB2(digital):
HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB3(digital):
HDBaseT w/HDCP (V1.4/2.2)
RGB4(digital):
3G SDI (SMPTE ST 424M / SMPTE 292M)
Output Terminals
Audio:
Stereo Mini Jack
External Control:
HDBaseT
Audio Out:
Stereo Mini Jack
Monitor Out:
HDBaseT Repeater

Power Consumption (typical)

On 960W / 855W / 0.4W / 0.15W Input Current 11.6A - 5.1A
Power Requirements 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)
Product:
23.6 x 9.4 x 19.3 in. / 599 x 238 x 490 mm
Shipping:
29.1 x 15.0 x 24.8 in. / 735 x 382 x 629 mm
Weight
Net Weight:
63.3 lbs. / 28.7 kg
Shipping:
78.3 lbs. / 35.5 kg

Environmental Conditions

Operating Temperature 32-113°F / 0-45°C Operating Humidity 20 to 80% (Non-Condensing)
Operating Altitude 0 to 3650 m (12,000 ft) Storage Temperature 14-122°F / -10-50°C
Storage Humidity 20% - 80% (non-condensing) Storage Altitude 0-12,000m / 0-39,370ft (above sea level)

Limited Warranty (parts & labor)

Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.

Additional Features

  • 4K Ready, Motorized Lenses
  • Geometric Correction
  • Edge Blending
  • Stacking
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • NaViSet Administrator 2
  • Quick power-off, ProAssist Software


Optical

Display Technology 1.0" LCD w/ MLA Light Source Life 20,000 hours
Throw Ratio
  • 0.53 to 0.65:1 Motorized Zoom Lens
  • 0.65 to 0.87:1 Motorized Zoom Lens
  • 0.86 to 1.25:1 Motorized Zoom Lens
  • 1.24 to 2.01:1 Motorized Zoom Lens
  • 1.98 to 3.95:1 Motorized Zoom Lens
  • 3.95 to 7.51:1 Motorized Zoom Lens
Projection Distance 2.17 to 261.9 ft. / 0.67 to 79.8m
Projector Angle 3.1 to 28.2° tele / 5.7 to 31.5° wide Lens
Zoom:
Motorized
Focus:
Motorized
F number, fnumber:
(XP-51ZL) F=1.94 to 2.20, f= 12.0 to 14.6mm, (XP-52ZL) F=1.84 to 2.25, f= 14.4 to 19.1mm, (XP-53ZL) F=1.8 to 2.24, f= 19.0 to 27.6mm, (XP-54ZL) F=1.8 to 2.24, f= 27.7 to 44.9mm, (XP-55ZL) F=1.84 to 2.58, f= 43.8 to 87.2mm, (XP-56ZL) F=1.85 to 2.41, f= 86.2 to 164.8mm
Keystone Correction +/- 40° horizontal, +/-30° vertical

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 39 dB normal / 35 dB eco
Regulations USA: UL (62368-1 3rd ed.) FCC Part15 Class B, Canada: CAN/CSA (62368-1:19 3rd ed.) ICES-003 Issue 7 Optional Lenses
  • Motorized Zoom Lens 0.53-0.65 (XP-51ZL)
  • Motorized Zoom Lens 0.65-0.87 (XP-52ZL)
  • Motorized Zoom Lens 0.86-1.25 (XP-53ZL)
  • Motorized Zoom Lens 1.24-2.01 (XP-54ZL)
  • Motorized Zoom Lens 1.98-3.95 (XP-55ZL)
  • Motorized Zoom Lens 3.95-7.51 XP-56ZL)

Accessories

Included
  • Remote Control (RMT-PJ40)
  • Quick Guide, Important Info
  • Lens Cap
  • Security Sticke
  • Lens Anti-Theft Screw
Optional
  • Remote Control (RMT-PJ40)
  • Motorized Zoom Lens 0.53-0.65 (XP-51ZL)
  • Motorized Zoom Lens 0.65-0.87 (XP-52ZL)
  • Motorized Zoom Lens 0.86-1.25 (XP-53ZL)
  • Motorized Zoom Lens 1.24-2.01 (XP-54ZL)
  • Motorized Zoom Lens 1.98-3.95 (XP-55ZL)
  • Motorized Zoom Lens 3.95-7.51 (XP-56ZL)
  • Ceiling Mount (IPJ2000CM)

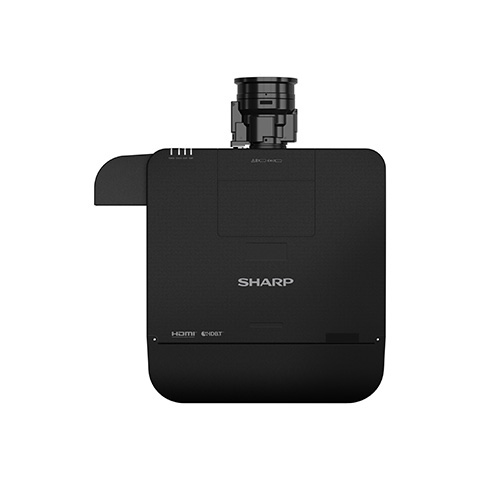

  • Input Terminal Cover (XP-13CV-B)

Lens Adjustment Functions

Motorized focus, zoom, horizontal/vertical shift, light shutter / Lens memory stores lens setting (shift/zoom/focus) / Range of shift is dependent on lens

Supported Screen Size (maximum)

60 to 500 in./ 1.5 to 12.7m

Geometric Correction
Allows you to project on spheres, cylinders, corner angles and more.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
Remote Diagnostics
Enables the user to monitor and make adjustments to the projector from a remote location.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Edge Blending
Blend multiple projectors together to create not standard images
Motorized Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Picture by Picture (PBP) mode
Displays a either second video source or the same video source in an window beside the main video source.
4K Ready
Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.
Carbon Savings Meter
Calculates the positive effects of operating the projector in ECO Mode, which is encouraged by an optional message at startup. A green ECO Mode button on the remote control makes the switch easy.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Picture-in-Picture
Allows two sources to be displayed on the screen at one time in either a picture-in-picture or side-by-side configuration.
Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
Wired Network Connection
Integrated RJ45 connection for quick connection to the LAN (10/100 base-T capability).
Auto Power On
Powers on the projector as soon as it is plugged into a power outlet.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Dust-Resistant Design
Sealed optical block minimizes the effects of dust, helping to ensure the delivery of crisp, distortion-free images.
ECO Mode™
Extends light source life, lowers audible noise and reduces total cost of ownership.
NaViSet Administrator 2™
Control, monitor and manage your display and projector settings in an all in one support system with NaViSet Administrator 2™. This software package provides unified control and asset management across product lines through an intuitive graphical user interface and allows for settings to be updated, tasks to be queried and reports to be generated using RS-232 or TCP/IP communication for large screen displays and projectors or DDC/CI protocol for desktop units.
Roll-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
Stacking Capabilities
Allows the projectors to boost an image’s brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.

Replacement Remotes

Replacement Remote

Mounts/Mounts Accessories

Ceiling Mount

Optional Lenses

0.53-0.65 Short Throw Zoom Lens (lens shift)
New
0.65-0.87 Short Throw Zoom Lens (lens shift) for the XP-A155U and A175U projectors
New
0.86-1.25 Short Throw Zoom Lens (lens shift) for the XP-A155U and A175U projectors
New
1.24-2.01 Short Throw Zoom Lens (lens shift) for the XP-A155U and A175U projectors
New
1.98-3.95 Short Throw Zoom Lens (lens shift) for the XP-A155U and A175U projectors
New
3.95-7.51 Short Throw Zoom Lens (lens shift) for the XP-A155U and A175U projectors

Multimedia Projector Misc

New
Input Terminal Cover (Black) for A Series Projectors

  • Remote control
  • Batteries
  • Power cord
  • Lens hole cap
  • User manual
  • Quick Start Guide
  • Product registration card
  • Lens anti-theft screw
  • Security Sticker
