Model: np-pa1004ul-w-41
$15,449.00 USD

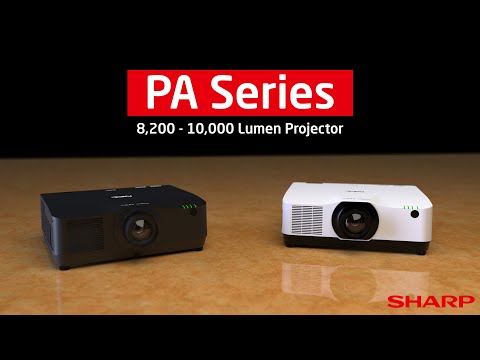

NEC's PA1004UL-W-41 is a 10,000-lumen LCD laser projector (White cabinet) bundle consisiting of the PA1004UL-W and NP41ZL lens. It has advanced professional installation features for higher education and corporate users. A new sealed LCD cooling system developed for the PA Series installation projectors delivers a filter/maintenance free projector with while delivering almost whisper quiet operation. With its multitude of digital inputs, connection to any computer or high definition device is possible. Enjoy design and installation flexibility with a complete line of optional motorized lenses (lens shift, focus and zoom), roll free installation capabilities along with built-in edge blending and stacking. The HDBaseT input and seperate HDBaseT repeater provide single connections for uncompressed full HD digital video, audio, ethernet power and various control signals.
NEC Star Student
NEC Star Student

Education pricing discounts available on select NEC products. Join NEC Star Student Today
  • 4K Ready - Display stunning 4K 60P content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details. HDR10 and BT.2020 signals from “Ultra HD Blu-ray” and “4K TV broadcasting” are supported on all digital inputs
  • Basic control of competitors product reducing the need for reprogramming of a control system. (call NEC for complete list)
  • TileMatrix enables 4Kx2K resolution utilizing 4 projectors via HDBaseT Repeater
  • Cinema Quality video processing/scaling creates life-like images
  • Integrated software applications such as DisplayNote(R), Crestron Roomview, AMX Beacon, Extron XTP and PJ link allow for complete interactivity and control
  • 10,000-lumen brightness enhances images for most applications
  • ProAssist™ is software for controlling the projector and adjusting the projected image on the screen from a computer via a network. It allows necessary adjustments to be carried out easily when combining several projectors together to project a large screen in a classroom, meeting room, auditorium or other large space.



Legal Disclaimer To California Residents
WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov


Display

Aspect Ratio 16X10 Native Resolution WUXGA 1920 x 1200 1920x1200
Maximum Resolution 4K 4096 x 2160 Contrast Ratio (typical) 3,000,000:1 (with Dynamic Contrast)

Synchronization Range

Horizontal (Analog/Digital) Analog: 15-100kHz, Digital: 15-153kHz Vertical Analog: 48-120Hz, Digital: 24-120Hz

Signal Compatibility/Connectivity

Supported Video Standards NTSC, NTSC4.43, PAL, PAL-60, PAL-M, PAL-N, SECAM SD/HD Video Signal Compatibility 480i, 480p, 576i, 576p, 720p, 1080i, 1080p, 4K
PC Signal Compatibility VGA, SVGA, XGA, SXGA, SXGA+, UXGA, WUXGA, Quad HD Macintosh Signal Compatibility Yes
Sync Compatibility Separate Sync / Composite Sync / Sync on G External Control RS-232, IR, HDBaseT, DDC/CI, RJ-45, USB (USB 2.0)
Input Terminals
RGB1(analog):
VGA 15 pin D-sub, Component video using ADP-CV1E adapter
RGB2(digital):
HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB3(digital):
HDMI (V2.0) w/HDCP (V1.4/2.2)
RGB4(digital):
DisplayPort w/HDCP (V1.3)
RGB5(digital):
HDBaseT w/HDCP (V1.4/2.2)
Audio 1:
Stereo Mini Jack
Output Terminals
Audio Out:
Stereo Mini Jack

Power Consumption (typical)

On 635W / 515W / 0.8W / 0.22W Input Current 10.5A - 4.6A
Power Requirements 100-240V AC, 50/60 Hz Power Supply Voltage 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)
Product:
23.6 x 8.5 x 19.3 in. / 599 x 216 x 490mm
External:
23.6 x 8.5 x 19.3 in. / 599 x 216 x 490mm
Shipping:
28.9 x 14.1 x 24.8 in. / 735 x 359 x 631 mm
Weight
Net Weight:
53.8 lbs. / 24.4kg
Shipping:
63.7 lbs. / 28.9 kg

Environmental Conditions

Operating Temperature 41-104°F / 5-40°C Operating Humidity 20 to 85% Humidity (Non-Condensing)
Operating Altitude 0 to 3650 m (12,000 ft) Storage Temperature 14-122°F / -10 50°C
Storage Humidity 20% - 80% (non-condensing) Storage Altitude 0-12,000m / 0-39,370ft (above sea level)

Limited Warranty (parts & labor)

Registered owners receive a 5-year or 20,000 hours parts and labor warranty including InstaCare next business day exchange.

Additional Features

  • 4K Ready
  • Motorized Lenses
  • Manual Keystone Correction
  • 3D Stereo
  • Geometric Correction
  • Quick power on
  • ECO Mode Technology
  • DiCom Simulation
  • Edge Blending
  • Stacking
  • Virtual Remote
  • DisplayNote
  • NaViSet Administrator 2
  • Quick power-off
  • Picture-in-Picture
  • Advanced AccuBlend
  • AutoSense
  • ProAssist Software


Optical

Light Output(Lumens) 10,000 Lumens Light Source Life 20,000 hours
Throw Ratio 0.8:1 Manual Fixed Lens , 1.16 – 1.56:1 Manual Zoom Lens w/lens shift , 1.46 – 3.02:1 Manual Zoom Lens w/lens shift , 2.90 – 4.79:1 Manual Zoom Lens w/lens shift , 4.59 – 7.02:1 Manual Zoom Lens w/lens shift , 0.32:1 Ultra-Short Throw Lens / 0.79 to 1.11:1 Motorized Zoom Lens / 1.30 to 3.02:1 Motorized Zoom Lens / 2.99 to 5.93:1 Motorized Zoom Lens Projection Distance 2.5 to 68.5 ft. / 0.74 to 20.9m
Projector Angle 10.3 to 10.8° tele / 13.7 to 14.5° wide Lens
Zoom:
Motorized
Focus:
Motorized
F number, fnumber:
(NP44ML-02LK) F=2.0, f= 6.27, (NP11FL) F= 2.3, f= 13.2mm, (NP12ZL) F= 2.2 to 2.69, f= 19.4 to 25.3mm, (NP13ZL) F= 1.7 to 2.37, f= 24.2 to 48.6mm, (NP14ZL) F= 2.2 to 2.64, f= 48.5 to 77.6mm, (NP15ZL) F=2.2 to 2.7, f= 76.6 to 116.5mm, (NP40ZL) F=2.0 to 2.5, f= 13.3 to 18.6mm, (NP41ZL) F=1.7 to 2.0, f= 21.8 to 49.8mm, (NP43ZL) F=2.2 to 2.6, f= 49.7 to 99.8mm
Keystone Correction +/- 40° horizontal, +/- 40° vertical

Mechanical

Installation Orientation Floor/Front, Floor/Rear, Ceiling/Front, Ceiling/Rear Fan Noise 35 dB normal / 32 dB eco
Regulations USA UL60950-1: 2nd edition, FCC Part15 Subpart B(ANSI C63.4.2014), CAN/CSA C22.2 No.60950-1-07,2nd Edition,2014, ICES-003 Issue6(ANSI C63.4:2014) Optional Lenses 0.8:1 Manual Fixed Lens w/lens shift (NP11FL), 1.16 – 1.56:1 Manual Zoom Lens w/lens shift (NP12ZL), 1.46 – 3.02:1 Manual Zoom Lens w/lens shift (NP13ZL), 2.90 – 4.79:1 Manual Zoom Lens w/lens shift (NP14ZL), 4.59 – 7.02:1 Manual Zoom Lens w/lens shift (NP15ZL), Ultra-Short Throw Lens 0.32:1 (NP44ML-02LK), Motorized Zoom Lens 0.79-1.11:1 (NP40ZL), Motorized Zoom Lens 1.30-3.03:1 (NP41ZL), Motorized Zoom Lens 2.88-5.93:1 (N43ZL)

Accessories

Optional
  • Remote Control (RMT-PJ40)
  • 0.8:1 Manual Fixed Lens w/lens shift (NP11FL)
  • 1.16 – 1.52:1 Manual Zoom Lens w/lens shift (NP12ZL)
  • 1.46 – 2.95:1 Manual Zoom Lens w/lens shift (NP13ZL)
  • 2.90 – 4.68:1 Manual Zoom Lens w/lens shift (NP14ZL)
  • 4.59 – 7.02:1 Manual Zoom Lens w/lens shift (NP15ZL)
  • Ultra-Short Throw Lens 0.32:1 (NP44ML-02LK)
  • Motorized Zoom Lens 0.79-1.11 (NP40ZL)
  • Motorized Zoom Lens 1.30-3.02 (NP41ZL)
  • Motorized Zoom Lens 2.99-5.93 (NP43ZL)
  • Option Cover (NP13CV-B)
  • Ceiling Mount (NC1100CM)
  • Extension Column (AEC006009)
  • Extension Column (AEC012018)
  • Extension Column (AEC0203)
  • Extension Column (AEC0305)
  • Power Cord (NP01PW1)
  • RGB Signal Cable (RGBCBL-PJPX)
  • 3D Glasses (XPAND C105-RF-1)
  • RF Emitter (XPAND AD025-RF-X1)


Primary Lenses

0.8:1 Manual Fixed Lens w/lens shift (NP11FL), 1.16 – 1.56:1 Manual Zoom Lens w/lens shift (NP12ZL), 1.46 – 3.02:1 Manual Zoom Lens w/lens shift (NP13ZL), 2.90 – 4.79:1 Manual Zoom Lens w/lens shift (NP14ZL), 4.59 – 7.02:1 Manual Zoom Lens w/lens shift (NP15ZL), Ultra-Short Throw Lens 1.20-1.80 (NP44ML-02LK), Motorized Zoom Lens 1.40-2.05 (NP40ZL), Motorized Zoom Lens 1.59-2.53 (NP41ZL), Motorized Zoom Lens 1.90-3.25 (N43ZL)

Lens Adjustment Functions

Motorized focus, zoom, horizontal/vertical shift, light shutter (dowser) / Lens memory stores lens setting (shift/zoom/focus) / Range of shift is dependent on lens

Supported Screen Size (maximum)

40 to 150 in. / 1.02 to 3.8m, NP11FL; 30 to 500 in. / 0.76 to 12.7m, NP12ZL, NP13ZL; 40 to 500 in. / 1.02 to 12.7m, NP41ZL; 50 to 500 in. / 1.27 to 12.7m, NP15ZL, NP40ZL, NP43ZL; 60 to 500 in. / 1.52 to 12.7m, NP14ZL; 100 to 400 in. / 2.54 to 10.16m, NP44ML-02LK

DMD Specifications

0.76" LCD w/ MLA

Notes

*** Subject to installation conditions. Maximum screen size is under the conditions of 14-ft-L @ screen gain 1.8
***** When the AC power to the projector power supply and the lamp power supply are provided by a single cable


4K Ready
Display stunning 4K content using NEC’s proprietary high performance video processing/scaling chip without the loss of critical details.
Built-in Wall Color Correction
Presets provide for adaptive color tone correction to display properly on non-white surfaces.
Dual HDMI inputs (with HDCP)
Ensure quick switching between presentations and allows for simultaneous digital connections of high-definition sources, such as Blu-ray players, cable boxes, satellite receivers and computers
Lens Shift
Vertical and horizontal lens shift enables flexible projector placement.
Power Management
Enables projector to automatically turn off when an incoming signal is not detected from any of the inputs.
Advanced AccuBlend™
Ensures detailed images when non-native resolution sources are connected to the projector.
Cornerstone Correction
Allows for horizontal, vertical and diagonal image correction for aligned images even when the projector is set up at an angle to the screen.
Stacking Capabilities
Allows the projectors to boost an image’s brightness up to 20,000 lumens, which is ideal for larger-sized screens and environments with heavy ambient light. This feature also prevents the complete loss of an image, which can happen when using only one projector.
Tilt-Free Installation
Allows the projector to be rotated freely (360°) in order to point up or down depending on the installation requirements.
Variable Audio Out
Adjusts the volume of an external speaker system using the projector's remote control.
AutoSense™
Intuitively syncs the projector with most computer signals and features one-touch image optimization.
Geometric Correction
Allows you to project on spheres, cylinders, corner angles and more.
Landscape/Portrait Capable
Allows for distortion-free display of content in various orientations, creating new application opportunities.
Portrait Mode
Ability to install a projector in its side to create a 10:16 portrait image
Virtual Remote
Used over the VGA cable to control the projector directly from a computer without the need for additional control cables.
Crestron Roomview
Provides unified management, including the ability to switch the power on and off for multiple projectors connected to a network.
Direct Power Off
Protects the lamp when the projector is accidentally unplugged or the power strip is switched off. Enables the fan to continue running until the lamp is properly cooled down. Internal sensors monitor lamp temperature and prevent the lamp from powering on.
Dual Computer Inputs
Ensures quick switching between presentations.
Edge Blending
Blend multiple projectors together to create not standard images
PIP/POP/Side-by-Side
Picture-in-picture (PIP) allows for a second frame within the screen area. Picture-on-picture (POP) surrounds the standard frame with multiple frames. Side-by-side places two sources adjacent to one another.
Power Zoom and Focus
Simplifies installation and operation by easily adjusting the lens through the remote control.
Quick Startup and Quick Power-Off
Allows users to begin presenting within 3 to 4 seconds and allows immediate power off with no cooling required after shutdown to ensure efficient energy usage.
TileMatrix™
Allows users to customize a video wall configuration using advanced On Screen Display controls.
VORTEX Technology Plus
Improves white level, color accuracy, dynamic range and varying levels of black in an image.

Reviews

NEC PA1004UL Laser Projector Review
Looking for a medium-venue installation projector that checks just about all the boxes? NEC’s PA1004UL not only pumps out up to 10,000 lumens but also boasts sealed optics and a laser light engine that can mean a long and maintenance-free life.

Press

NEC Display’s Introduces Quiet and Affordable 10,000 Lumen PA1004UL Laser Projector
Presentation-oriented projector launches alongside NEC Display’s free to use virtual Image Calculator and Projector Locator tool
NEC Display’s Introduces Quiet and Affordable 10,000 Lumen PA1004UL Laser Projector
Presentation-oriented projector launches alongside NEC Display’s free to use virtual Image Calculator and Projector Locator tool


Mounts/Mounts Accessories

Adjustable Extension Column, 12" - 18"
Adjustable Extension Column, 6" - 9"
Adjustable Extension Column, 2' - 3'
Adjustable Extension Column, 3' - 5'

Optional Lenses

4.7-7.2:1 Zoom Lens (lens shift)
0.79 – 1.11:1 Zoom Lens (lens shift)
0.79:1 Fixed Short-Throw Lens
1.46 - 3.02:1 Zoom Lens (lens shift)
1.30 – 3.02:1 Zoom Lens (lens shift)
2.90 - 4.79:1 Zoom Lens (lens shift)
1.16 - 1.56:1 Zoom Lens (lens shift)
2.99 – 5.93:1 Zoom Lens (lens shift)
0.32:1 Ultra-Short Throw Lens
0.32:1 Ultra-Short Throw Lens

Multimedia Projector Misc

3D Glasses
RF Transmitter

Large Screen Display Misc

MultiPresenter Stick

Cables/Adapters

Power Cable

Replacement Remotes

Replacement Remote

  • Remote control
  • Batteries
  • Power cord
  • Lens hole cap
  • User manual
  • Quick Start Guide
  • Product registration card
  • Lens anti-theft screw
  • Security Sticker
