New
Model: PN-M552
Contact Us or call for pricing: 866.771.0266
Create pixel perfect imagery with the high-end panel quality of the new fully commercial Sharp PN-M Series large format displays. By implementing premium features and focusing on creating impressionable digital signage experiences, the PN-M series gives customers an elite display option with its one-of-a-kind and proprietary SpectraView Engine capabilities, these displays offer out-of-the-box factory panel calibration, allowing for consistent visuals out of the box. On top of that, these products allow customers the modularity capabilities to customize their product based on their needs and application. The new series contain a full metal mechanical chassis, allowing for a more robust design necessary for commercial applications while maintaining the attractive aesthetics that allow the focus of onlookers to be on what matters - the message. Robust connectivity interface allows customers to have up-to-date connectivity options while also allowing for enhanced daisy chain capabilities when tying displays together for video or control signal distribution. The Sharp PN-M series boasts 550 cd/m2 brightness which is ideal for a majority of high end digital signage applications in restaurants, command and control, retail, healthcare and corporate environments when high-end and feature rich displays are necessary to convey important messaging.

  • Industrial-strength, premium-grade panel with additional thermal protection, internal temperature sensors with self-diagnostics and fan-based technology, allow for 24/7 operation
  • 4K UHD native resolution allows for crystal clear imagery and messaging that become more vivid and lifelike than ever before!
  • Integrated USB-C input with DP-Alt Mode, 65W Power Delivery and Hub functionality allow for

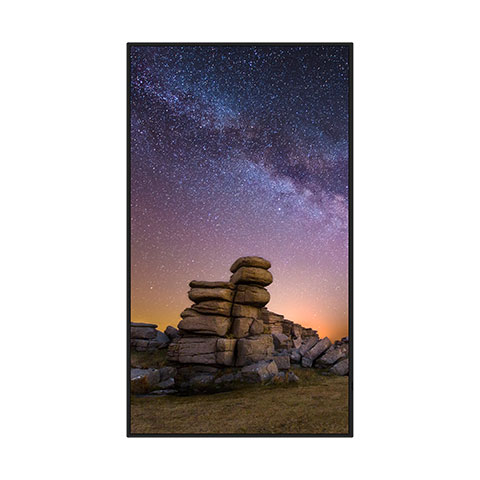

  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • Bidirectional and Full External Control allows for easy integration into control systems via LAN or RS232C
  • LAN Daisy Chain passes RS-232C, TCP-IP and IR signal to easily control groups of displays without having to run extra cable
  • 550 cd/m2 brightness with high haze panel will capture the attention of audience in almost any situation
  • Enhanced Daisy Chain Capabilities through both HDMI and DisplayPort Out Connections passing any digital input into the display
  • Failover Capabilities with full Input Change functionality allow peace of mind as the display will automatically switch to a secondary or tertiary source if the primary source fails
  • Energy Star 8.0 Certified Product
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations



Legal Disclaimer To California Residents
WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov


Display

Panel Technology IPS Viewable Image Size 55 "
Aspect Ratio 16:9 Screen Resolution 3840x2160
Supported Resolutions DIsplayPort: V1.4 - Up to 3840 x 2160 (60Hz), HDMI: V2.0 - Up to 4096 x 2160 (60Hz) Pixel Pitch 0.32 mm
Pixels Per Inch 81 @ native resolution Backlight Type LED Edge-lit
Brightness (typical) 550 cd/m2 Contrast Ratio (typical) 1200:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Response Time (Gray to Gray) 8 ms
Refresh Rate 60Hz Active Screen Area 47.2 x 26.8 in. / 1209.6 x 680.4mm
Orientation Landscape/Portrait Dimming Capability Local Dimming Capable
Displayable Colors More than 1.08 billion (10-bit dithered) Color Temperature (Max) (°K) 15000K
Color Temperature (Min) (°K) 3000K Gamma (Typical) Custom adjustment from 0.5 - 4.0 (0.1 increments) through SpectraView Engine, sRGB, L Star, Rec. 1886, HDR-Hybrid Log, HDR-ST2084 (PQ), DICOM, Programmable

Synchronization Range

Horizontal (Analog/Digital) Digital: 15.0 - 135.0kHz (HDMI), 22.0 - 134.0 (DisplayPort) Vertical Digital: 23.0 - 76.0Hz

Input Signal

Video Digital TMDS / DisplayPort

Signal Compatibility/Connectivity

PC Signal Compatibility Yes Macintosh Signal Compatibility Yes
Video Digital TMDS / DisplayPort External Control LAN In/Out and RS232 In - Full external control capabilities

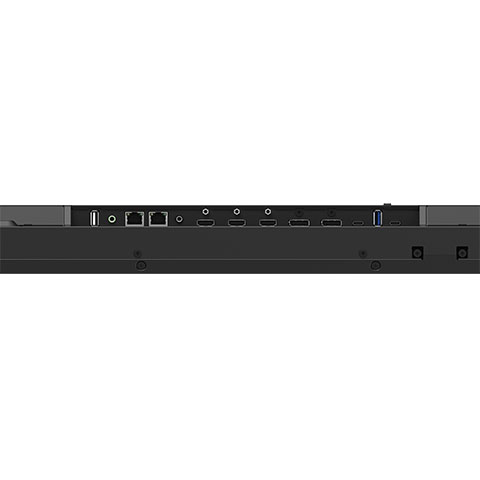

Input Terminals
Digital:
HDMI (2.0 x 2 with HDCP), DisplayPort (1.4 x 2 with HDCP), USB-C (DP-Alt Mode, U
Audio:
DisplayPort Audio, Audio via USB-C (DP-Alt), HDMI Audio x2
External Control:
RS-232C, LAN (100Mb), 3.5mm Mini-Jack (IR Remote)
Data:
USB-C (Hub, 20V/3.25A), USB-A (Service, 5V/2.5A), USB-A (Downstream, 5V/0.9A), USB-C (Downstream, 5V/1.5A)
Output Terminals
Digital:
HDMI (2.0), DisplayPort (1.4)
Audio:
3.5mm Mini-Jack
External Control:
LAN (100Mb)

Power Consumption (typical)

On 105W ECO Mode Standby <0.5W
Network Standby 0.5W Power Consumption (max) 155W (Max Brightness), 355W (Brightness Max, SDM Max, Volume Max, USB-C Pow
Power Savings Mode 2 W Power Requirements 1.7 - 4.0A @ 100V - 240V

Physical Specifications

Bezel Width (Left/Right, Top/Bottom) 0.43 in./0.43 in., 0.43 in./0.54 in. : 11 mm/11 mm, 11 mm/13.9 mm Dimensions (WxHxD)
Without stand:
48.7 x 27.9 x 2.3 in. / 1235.6 x 709.3 x 59.5 mm
Shipping:
54.7 x 33.5 x 6.3 in. / 1390.0 x 850.0 x 160.0mm
Weight
Net Weight (without stand):
45.2 lbs. / 20.5 kg.
Shipping:
59.5 lbs. / 27.0kg
VESA Hole Configuration 300 x 300mm (M6 x 4-hole)

Environmental Conditions

Operating Humidity 20 - 80% Operating Altitude 9843 ft. / 3000m
Storage Temperature -4-140°F / -20-60°C Storage Humidity 10-80%
Storage Altitude 40,000 ft. / 12,192m

Environmental Compliance

ENERGYSTAR Energy Star 8.0

Limited Warranty (parts & labor)

3 years Advanced Exchange

Additional Features

  • AMX Support
  • Automated Email Alert Function
  • ARC Support through HDMI
  • Crestron onnected V2 Support with XiO Cloud
  • IEEE802.1x Wired Network Authentication
  • SSL/TLS (HTTPS) Display Browser Control
  • Display Wall Calibrator Compatible
  • HDR Support (PQ, HLG, HDR10)
  • Key Guide
  • NaViSet Secure
  • Signed FW upon Install
  • IP Address Filtering
  • MAC Address Filtering
  • SNMP V1/2/3
  • USB/LAN Lockout Compatibility
  • OSD Rotation for Portrait Orientation
  • NEC Firmware Update Tool Compatible
  • 65W Power Delivery via USB-C
  • PD Comms TOol Support
  • Real Time Clock
  • Local Dimming
  • TileMatrix
  • SNMP Support
  • Consumer Electronics Control (CEC)
  • Daisy Chain Capabilities
  • SpectraView Engine Technology
  • Wide Color Gamut Panel
  • Integrated Temperature Sensors and Active Cooling Fans
  • Full Change Detect Functionality
  • Programmable Gamma
  • Energy Star 8.0
  • Color Vision Emulation
  • 6-axis Color Trim
  • Uniformity Adjustment
  • Scheduler Function
  • Off Timer
  • Vacation Switch


Accessories

Included
  • 3m Power cord
  • 2.0m HDMI cable
  • IR Remote Control
  • Batteries
Optional
  • Wall Mount (WMK-3298T)
  • IR/Human Sensor Accessory (KT-RC3)
  • Table Top Stand (ST-43M)
  • Optional Active Speaker (SP-RM3a)

Cooling Method

Multiple integrated temperature sensors and fans for active cooling and real time temperature measuring to ensure that the display stays cool for extended runtimes

  • 3.0m Power cord
  • 3.0m HDMI cable
  • Wireless remote control
  • Batteries
  • Setup Guide
