Model: PN-E509
$677.00 USD
Enhance your meeting and conferencing performance with stunning UHD resolution. Get high-end quality and reliability at a low total cost of ownership with long life-times. Professional haze levels ensure great visibility without distracting reflections - along with brightness of up to 350 cd/m², the 50" Sharp PN-E509 meets the demands of today’s meeting environments. An integrated MediaPlayer supports native UHD resolution for content playback with auto-play function. Requiring no additional cables, external devices or signage software, the USB MediaPlayer enables a simple seamless professional signage solution. With this Sharp display, presenters will feel confident during meetings while retailers and hospitality facilities can boost sales through digital signage. For instant start-up in meeting spaces, inputs are detected automatically with easy switching between HDMI or USB-C sources. Facilities managers will welcome the ability to remotely control their digital estate via the network thanks to the integrated LAN and NaviSet Administrator 2 functionality making this display the perfect choice for corporate meeting rooms and entry level digital signage.
  • 4K UHD native resolution allows for high end visual acuity!
  • Built-in, integrated 10W speakers enhance the experience with superior sound
  • Industrial-strength, premium-grade panel with metal frame bezel, allows for hassle-free 16/7 operation
  • Tilt back and forth installation (-20°~20°) to install it at desired angle

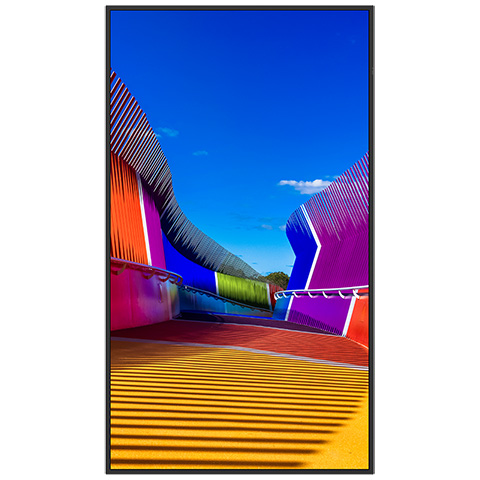

  • Landscape and Portrait orientation allows for flexibility of installation dependent on your needs
  • 24-Hour On/Off timer maintains power schedules
  • Integrated Media Player allows for audio, video or image playback via USB
  • Full 3 year commercial warranty to allow for peace of mind and protection of your investment
  • USB Type-C port for audio/video input
  • NaViSet Administrator 2 Free software solution that greatly eases administration and management of larger display device installations



Legal Disclaimer To California Residents
WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov


Display

Panel Technology VA Viewable Image Size 50 "
Aspect Ratio 16:9 Screen Resolution 3840x2160
Supported Resolutions HDMI: Up to 3840 x 2160 (60Hz), HDCP 2.2/1.4, USB-C: Up to 3840 x 2160 (60Hz), HDCP 2.2/1.3 Pixel Pitch 0.29 mm
Pixels Per Inch 89 PPI Backlight Type LED Direct-lit
Brightness (typical) 350 cd/m2 Contrast Ratio (typical) 4000:1
Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10 Response Time (Gray to Gray) 8 ms
Refresh Rate 60Hz Active Screen Area 43.14 x 24.26 in / 1095.8 x 616.4 mm
Orientation Landscape/Portrait Displayable Colors 1.07 billion

Synchronization Range

Horizontal (Analog/Digital) 15.0 - 136.0kHz (Digital) Vertical 24.0Hz - 75.0Hz (Digital)

Signal Compatibility/Connectivity

SD/HD Video Signal Compatibility USB-C x 1 PC Signal Compatibility Yes
Macintosh Signal Compatibility Yes External Control LAN and RS232 In
Input Terminals
Digital:
HDMI (2.0 x 3 with HDCP 2.2), USB-C (x1 with)
Audio:
Stereo Mini Jack x1, HDMI Audio x2, USB-C Audio x1
External Control:
RS-232C, LAN (100Mb), IR Remote
Data:
USB 2.0 (Media Player Auto Playback)
Output Terminals
Audio:
Stereo Mini-Jack 3.5mm

Power Consumption (typical)

On 99W ECO Mode Standby 0.5W
Network Standby 2W Power Consumption (max) 135 W
Input Current 1.6A @ 100V / 0.6A @ 240V Power Requirements 100-240V AC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)
Without stand:
44.09 x 25.24 x 2.36 in. / 1120 x 641 x 59.9 mm
Shipping:
49.33 x 29.96 x 5.04 in. / 1253 x 761 x 128 mm
Weight
Net Weight (without stand):
20.28 lbs. / 9.2 kg.
Shipping:
28.66 lbs / 13 kg
VESA Hole Configuration 200 x 200mm (M6)

Environmental Conditions

Operating Temperature 32-104°F / 0-40°C Operating Humidity 20% to 80%
Operating Altitude 16,404 ft. / 5,000m Storage Temperature -4 - 140°F / -20 – 60°C
Storage Humidity 10-80% Storage Altitude 16,404 ft. / 5,000m

Limited Warranty (parts & labor)

3 years

Additional Features

  • Advanced Video/Audio Settings
  • Tile Matrix support
  • CEC Communication
  • Integrated USB Media Player
  • NaViSet Administrator 2 Compatible
  • Power USB (5V/3A)
  • USB-C Port for Audio/Video
  • Variable picture modes (Dynamic/Standard/Energy Savings/Conferencing/HighBright/Custom)
  • Variable Sound Modes (Standard/Music/Movie/Custom)


Optical

Display Technology LCD w/ LED backlight

Accessories

Included
  • Batteries
  • Power Cord
  • Wireless remote control
  • Cord clamp
Optional
  • Table Top Stand (ST-43M)
  • Wall Mount (WMK-3298T)

Built-In Speakers
Enhance the visual experience with superior sound
Round-The-Clock Scheduler
Allows for advanced scheduling of monitor powering up/down, increasing panel lifetime, reducing power consumption and saving the time and expense of finding and purchasing a third-party scheduling solution.
4K Resolution
Provides the ultimate in screen clarity.
USB Viewer
Permits playback (without a PC) of presentations or display images stored as JPG files from a USB flash drive.
