Model: EP-CA22
Contact Us or call for pricing: 866.771.0266
Sharp's EP-CA22 ePaper is an always on 28.6" display for digital signage users. With as low as 0W power consumption, it creates remarkably brilliant images even in brightly lit environments. With a paper like view, wide viewing angle and no backlight its easy on your eyes. Updating content is easy using either the PC, USB-C thumbdrive, Wireless or Bluetooth connections.
  • Always-On - Display is viewable at all times creating vibrant images even without power.
  • Low Power Consumption - As low as 0W power consumption from the panel creating zero carbon emissions.
  • Visiblility - The displays ensure excellent visibility in both the brightest environments, as well as semi-outdoor settings.
  • Paper-Like - Reflective display with no backlight and 180° wide viewing angle provide paper like viewing that is easy on the eyes.

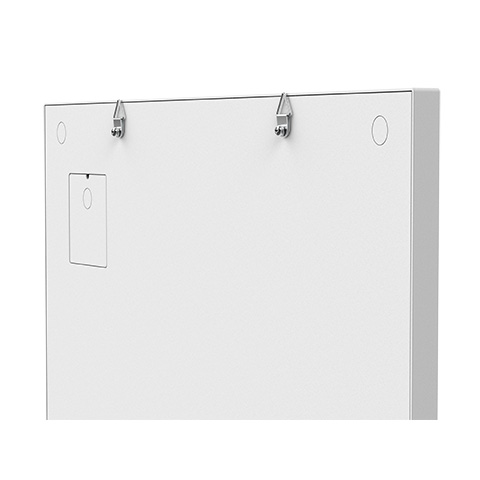

  • Easy to install - The thin lightweight design allows for easy and flexible installation. It also enables installation in locations that could not be achieved with existing displays.
  • Flexible content provisioning - PC, USB-C thumbdrive, Bluetooth, and wireless LAN connectivity allow for multiple ways to transfer content from the source to the display.
  • Controls - The Mode button offers the capability to switch between Manually or Automatically switching images. The Pairing button allows for connection to mobile devices to update content to the display.



Legal Disclaimer To California Residents
WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov


Display

Panel Technology ACeP Viewable Image Size 28.6 "
Color Type ACeP Aspect Ratio 16:9
Screen Resolution 3060x2160 Pixel Pitch 0.194 mm
Backlight Type None Active Screen Area 560 x 315mm
Orientation Landscape, Portrait, Face-up, Face-down

Signal Compatibility/Connectivity

Supported Video Standards *.jpg, *.jpeg, *.bmp, *.png Digital USB-C
Input Terminals
RGB2(digital):
USB-C
RGB3(digital):
LAN (11b/g/n/ac)


Power Consumption (typical)

On 16 / 1 Input Current 3A
Power Requirements 9V DC, 50/60 Hz

Physical Specifications

Dimensions (WxHxD)
With stand:
23.5 x 19.3 x 13.8 in. / 596 x 1.2 x 351.6 mm
Shipping:
30.0 x 4.9 x 16.5 in. / 685 x 124 x 420 mm
Weight
Net Weight (with stand):
5.1 lbs. / 2.3 kg
Shipping:
9.9 lbs. / 4.5 kg
VESA Hole Configuration 200 x 200mm

Environmental Conditions

Operating Temperature 32 to 122°F / 0 to 50°C Operating Humidity 20 to 80% Humidity (Non-Condensing)
Storage Temperature -4 to 140°F / 20 to60°C Storage Humidity 10% - 80% (non-condensing)
Storage 16GB (Free area: 14GB)

Optical

Display Technology ePaper

Accessories

Included
  • Power Cord
  • AC Adapter
  • Operation Manual
  • Warranty Card


  • Power Cord
  • AC Adapter
  • Operation Manual
  • Warranty Card
