Model: EA271Q-BK
$635.00 USD

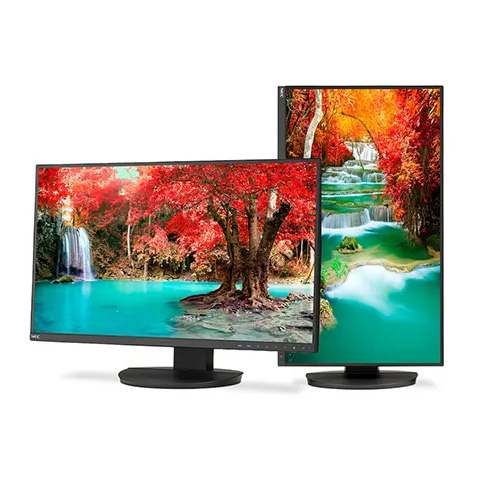

The 27" NEC MultiSync® EA271Q is a WQHD LCD designed for multiple-monitor configurations. With 3 bezels measuring only 1.0mm each, this widescreen model features PLS panel technology with wide viewing angles (178° horizontal/vertical) and an LED backlight for a slimmer profile, lighter weight and increased power savings. This model also features a height-adjustable stand and full connectivity with DisplayPort, HDMI and DVI-D inputs as well as a DisplayPort output. In addition, the USB Type-C input can serve as a single connection to a laptop, providing power, video and USB connectivity through one cable. The EA271Q includes touch-sensitive On Screen Display controls, a Picture by Picture (PBP) mode for two inputs onscreen at the same time, streamlined cable management and ControlSync™ technology, which allows users to control the settings of up to six units in a multi-monitor configuration.
  • High resolution PLS panel with wide viewing angles for excellent image reproduction
  • Full connectivity, including DisplayPort, HDMI and DVI-D inputs as well as USB Type-C
  • USB Type-C input delivers 60W of power as well as video and USB over one cable
  • Touch-sensitive OSD controls are integrated into the bezel, making display adjustments easier than ever
  • Human and ambient light sensors automatically detect your work conditions to determine the proper display brightness and conserve power
  • Fully adjustable quick-release stand, including height-adjust (150mm), pivot, tilt and swivel capabilities, adds flexibility and comfort to your viewing preferences
  • Compatible with SpectraViewII calibration software and the SVII-EA-KIT calibration kit
  • Available with SpectraViewII Entry Level Color Calibration Kit (EA271Q-BK-SV)



Legal Disclaimer To California Residents
WARNING: This product can expose you to chemicals including Styrene and Formaldehyde (gas), which are known to the State of California to cause cancer, and Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov


Display

Panel Technology PLS Viewable Image Size 27 "
Aspect Ratio 16:9 Native Resolution 2560x1440
Pixel Pitch 0.23 mm Pixels Per Inch 109 @ native resolution
Backlight Type W-LED Brightness (typical) 350 cd/m2
Contrast Ratio (typical) 1000:1 Viewing Angle (typical) 178° Vert., 178° Hor. (89U/89D/89L/89R) @ CR>10
Response Time (typical) 6 ms Active Screen Area 596.74 x 335.66mm
Displayable Colors More than 16.7 million Lookup Table Yes
Color Gamut
Adobe RGB Coverage/Size:
78.3% / 83.2%
NTSC Coverage/Size:
74.6% / 79.5%
sRGB Coverage/Size:
100.0% / 112.2%


Synchronization Range

Horizontal (Analog/Digital) 31.5 KHz - 94.0 KHz Vertical 56.0 Hz - 75.0 Hz

Signal Compatibility/Connectivity

DisplayPort, DVI-D, HDMI, USB Type-C Input Terminals
Connectors:
DisplayPort, DVI-D, HDMI, USB Type-C
Output Terminals
Connectors:
DisplayPort 1.2 (SST / MST)


Power Consumption (typical)

On 31W Power Consumption (max) 134 W
Power Savings Mode 0.29 W

Physical Specifications

Dimensions (WxHxD)
With stand:
24.1 x 14.9 - 20.8 x 9.8 in. / 611.8 x 378.0 - 528.0 x 250.0 mm
Without stand:
24.1 x 14.2 x 2.6 in. / 611.8 x 361.9 x 67.2 mm
Shipping:
28.7 x 18.7 x 8.5 in. / 730.0 x 475.0 x 217.0 mm
Weight
Net Weight (with stand):
13.5 lbs. / 6.1 kg
Net Weight (without stand):
20.9 lbs. / 9.5 kg.
Shipping:
26.9 lbs. / 12.2 kg
VESA Hole Configuration 100 x 100 mm

Environmental Conditions

Operating Temperature 41-95°F / 5-35°C Operating Humidity 20-80%
Operating Altitude 16,404 ft. / 5000m Storage Temperature 14-140°F / -10-60°C
Storage Humidity 10-85% Storage Altitude 40,000 ft. / 12,192m

Environmental Compliance

ENERGYSTAR 7.0 RoHS Yes
TCO 7.0

Limited Warranty (parts & labor)

3 years

Additional Features

  • USB Type-C 60W power delivery
  • PBP mode
  • PBP button
  • Tilt
  • Swivel
  • Pivot
  • Height-adjustable stand
  • ControlSync
  • Customize Setting
  • Integrated speakers
  • 3-port USB 3.1 hub
  • LED backlit
  • Auto brightness with ambient light sensor
  • Human sensor
  • ECO Mode
  • Carbon footprint meter
  • Resettable cost meter
  • 3-sided narrow bezel
  • Carrying handle
  • Rapid Response
  • XtraView
  • Hot Key
  • Touch OSD controls
  • OSD Lock Out
  • Cable management
  • NaViSet Administrator software
  • VESA mount
  • HDCP
  • DDC/CI
  • Plug and Play (VESA DDC2B)
  • VESA DPMS power management
  • Uniformity correction
  • Digital controls
  • ISO 9241-307 Class I
  • DICOM SIM


Accessories

Included
  • Power cord
  • DisplayPort cable
  • USB cable
  • ControlSync cable
Optional
  • SpectraViewII Color Calibration Kit (SVII-PRO-KIT)
  • SpectraViewII EA Color Calibration Kit (SVII-EA-KIT)
  • Color calibration sensor (MDSVSENSOR3)
  • Spyder color calibration sensor (CC-SPYDER5)
  • SpectraView software (SVIISOFT)
  • Mini DisplayPort to DisplayPort cable (PA-MDP-CABL)

Rapid Response™
Delivers virtually uninterrupted, undistorted viewing of high-speed, full-motion video.
No Touch Auto Adjust™
Allows the monitor to be automatically adjusted to optimal image settings when initially turned on.
Ambix®
Allows up to two inputs (VGA and DVI-I) to be connected to a single monitor and for each of the three signals to be displayed with the press of a button.
LED Backlight
Provides for industry-leading low power consumption and less hazardous materials.
ControlSync™
Allows users to control up to six units in a multi-monitor configuration. Upon establishing one unit as the master, users will be able to control many performance attributes of the multi-monitor setup in unison through the single monitor.
XtraView+™
Delivers wide viewing angles of up to 178º horizontally and vertically (up to 89º up, down, left and right) with less color shift and without any glare, reflection or distortion.
Ambient Light Sensor
Automatically adjusts the backlight and power management depending on the ambient lighting brightness.
Human Sensor
Monitors the presence of a user in front of the display and can go into power saving mode if the user leaves, saving up to 99% power
Carbon Footprint Meter
Informs and motivates responsible use of the display by calculating and tracking the conservation of green gas emissions in real time.
Kensington Lock
Enables a security cable to be attached to the projector.

Select where this product will primarily be used to see available warranties:

We're sorry, but this product does not offer service plans for personal residences.

Advanced Exchange Over Night (Next Business Day) Service+ 3 Years
Onsite Over Night (Next Business Day) Service+ 3 Years
Advanced Exchange Over Night (Next Business Day) Extended Warranty 4 Years
Onsite Over Night (Next Business Day) Extended Warranty 4 Years
Extended Warranty 4 Years
Advanced Exchange Over Night (Next Business Day) Extended Warranty 5 Years
Extended Warranty 5 Years
Onsite Over Night (Next Business Day) Extended Warranty 5 Years

Hoods

2nd Generation Display Hood for 24"-27" displays

SpectraView Kits

Professional Display Calibration Bundle
Basic Color Calibration Bundle

Software

Display Calibration Software

Sensors

NEC Customized Wide Gamut Color Calibration Sensor

  • Setup sheet
  • User manual
  • Power cord
  • DisplayPort cable
  • USB cable
  • ControlSync cable
  • Factory Calibration Report
